Transmittal Summary

The SEDRIS Data Representation Model APPENDIX A - Classes Transmittal Summary

Class Name: Transmittal Summary

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class summarizes the content of the transmittal for which its aggregate <Transmittal Root> instance serves as root object, in terms of:

Environmental domains represented (such as, terrain, ocean)
Types of data used (such as geometry, features, data tables)
DRM classes used
EDCS Classifications used
Spatial reference frames used

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

Example

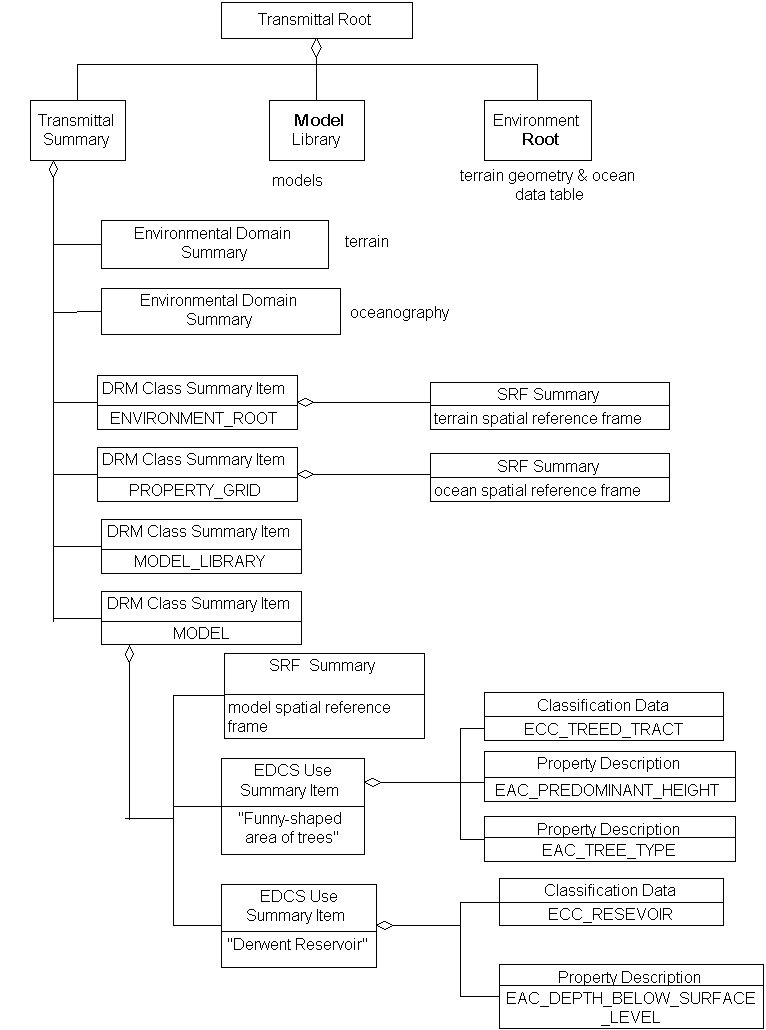

A <Transmittal Summary> for a transmittal containing a <Model Library> and an <Environment Root>.

FAQs

How are the environmental domains summarized?: The <Transmittal Summary> can aggregate a list of <Environmental Domain Summary> instances. Each <Environmental Domain Summary> represents one of the domains for which data is provided.
How are the SEDRIS classes used summarized?: The <Transmittal Summary> can aggregate a list of <DRM Class Summary Items>. Each <DRM Class Summary Item> represents one of the classes used.
How are the classifications summarized?: Each classification (i.e. the ECC and the sets of EACs used with it) that is used in the transmittal is summarized using a <EDCS Use Summary Item>. Each <EDCS Use Summary Item> is a component of the <DRM Class Summary Item> that represents the class that uses the classification within the transmittal.
How are the spatial reference frames summarized?: Each spatial reference frame that is used in the transmittal is summarized using a <SRF Summary>. Each <SRF Summary> is a component of the <DRM Class Summary Item> that represents the class that uses the spatial reference frame within the transmittal.

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_Present_In	features_present;
SE_Present_In	geometry_present;
SE_Present_In	geometry_topology_present;
SE_Present_In	data_tables_present;	(notes)
SE_Present_In	priority_values_present;	(notes)
SE_Present_In	mobility_values_present;	(notes)
SE_Present_In	thermal_values_present;
SE_Present_In	terrain_lods_present;
SE_Present_In	two_D_features_flag;
SE_Boolean	models_present;
SE_Boolean	images_present;
SE_Boolean	sounds_present;
SE_Boolean	symbols_present;
SE_Boolean	colours_present;	(notes)
SE_Colour_Model	colour_model;	(notes)
SE_Boolean	EDCS_usage_list_is_comprehensive;	(notes)

Notes

Fields Notes

data_tables_present

 This indicates whether <Data Table> instances of some kind are present
 in the transmittal being summarized, and if so, in what context.

priority_values_present

 This indicates whether <Rendering Priority Level> instances are present
 somewhere in the transmittal being summarized, and if so, in what
 context.

mobility_values_present

 This indicates whether <Property> instances exist somewhere in the
 transmittal, the EAC codes of which specify mobility, a.k.a.
 trafficability, information, such as
 EAC_SURFACE_TRAFFICABILITY_GROUP_SIMNET.

colours_present

 This indicates whether <Colour> instances are present in the
 transmittal being summarized. If no <Colour> instances are
 present, the value of the colour_model field is not applicable.

colour_model

 Interpreted by the Level 0 API only if colours_present is set to
 SE_TRUE.

 The colour model used by the data provider for all <Colour> instances
 in the transmittal. For instance, if this field's value is
 SE_CLR_MDL_RGB, then any <Colour Data> instance in the transmittal
 shall be an <RGB Colour>; otherwise, the transmittal is invalid.

EDCS_usage_list_is_comprehensive

 whether <EDCS Use Summary Item> is comprehensive
