The SEDRIS Data Representation Model
APPENDIX A - Classes
SRF Summary

Class Name: SRF Summary

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

Summarizes a spatial reference frame that is used in a transmittal.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

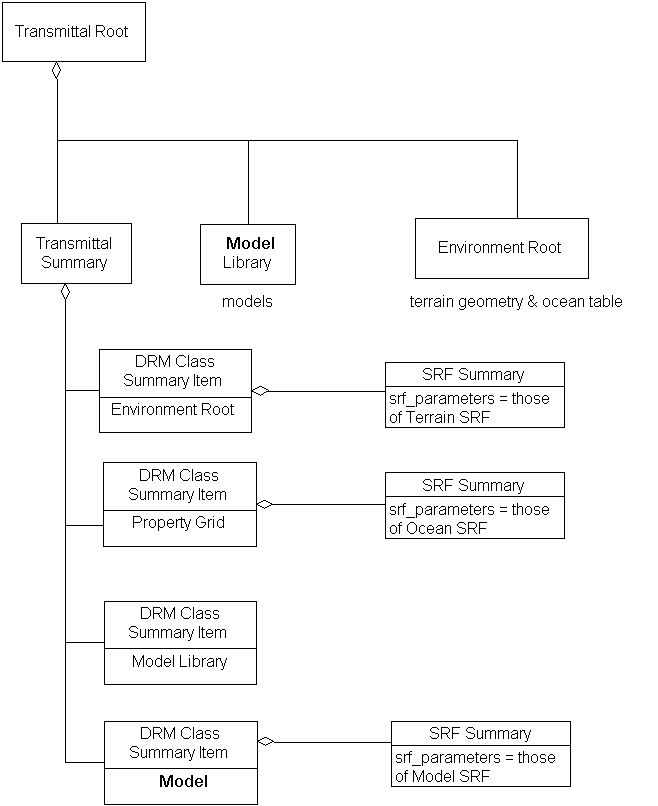

  1. Consider a transmittal containing terrain geometry, an oceanographic <Property Grid> and a number of <Model> instances. The terrain is in one spatial reference frame, the <Property Grid> in another, and some of the <Model> instances in a third (in this example, LSR).

    SRF Summary, Example 1

FAQs

No FAQs supplied.

Constraints

Component of (two-way)

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SRM_SRF_Parameters srf_parameters;
