Class Name: EDCS Use Summary Item

Superclass - <SEDRIS Abstract Base>

Subclasses

Definition

An instance of this DRM class specifies a pattern of EDCS codes that appears within the scope being summarized, specifically, an EDCS_Classification_Code (ECC) and a set of EDCS_Attribute_Codes (EACs) that are used with it, or just an individual EDCS_Attribute_Code.

The <Classification Data>, which may be qualified by <Property Values>, represents the (potentially qualified) classification being described, if any.

Primary Page in DRM Diagram:

• 20

Secondary Pages in DRM Diagram:

Example

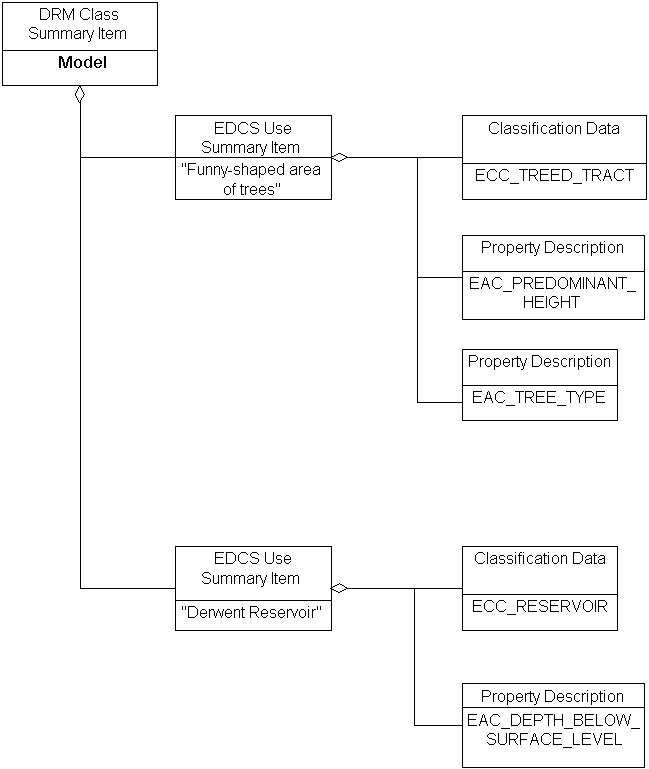

1. A transmittal containing two different <Model> instances, one classified using ECC_TREED_TRACT with attributes and the other using ECC_RESERVOIR with attributes.



FAQs

No FAQs supplied.

Constraints

Composed of (two-way)

• zero or one <Classification Data> instance
• zero or more <Property Description> instances

Component of (two-way)

• zero or more <Base Summary Item> instances
• zero or one <Transmittal Summary> instance

Inherited Field Elements

Field Elements

Notes

Fields Notes

description

 An abstract, human-readable description of the "overall" classification
 specified by the given instance; may be empty.
