The <Property Value> instances of a representation of a lake might include its EAC_SURFACE_MATERIAL_TYPE.

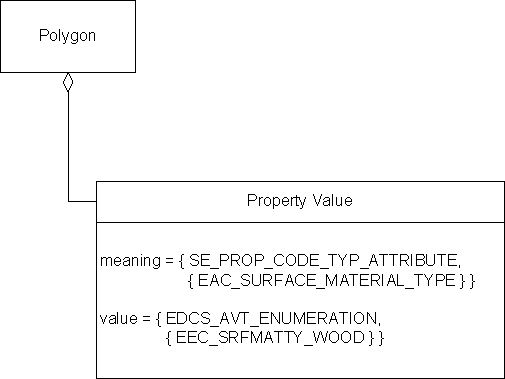

Consider the man-made materials that can be found on any surface, such as cloth, carpet, asphalt, silk, metal, and natural materials, such as wood. To specify the material making up a wooden wall represented by a <Polygon> instance, the data provider represents it as
Consider an <Areal Feature> representing a surface covered with vegetation. To specify the type of vegetation, the data provider gave it a <Property Value> component with a meaning of EAC_VEGETATION_TYPE, and the value specifying the exact type of vegetation.
Consider an <Areal Feature> labeled as "Red Field", because the surface represented has clay soil present. To describe the soil composition at some point or for some surface, <Property Value> instances are used, so a <Property Value> of the appropriate attribute is attached to the <Areal Feature>.
Consider acoustic response, that is, changes to characteristics of objects in response to acoustic stimuli, such as the resonant frequency of a plate, response (such as echo, phase shift, absorption, diffraction), or frequency.
Consider electromagnetic emission, that is, the emission characteristics of a geometric object or feature, including the electromagnetic wavelengths, amplitudes, and directionality. Examples include
- The thermal signature of a rock at noon is described by its electromagnetic emission.
- The headlight of a truck.
Consider electromagnetic response, that is, changes to characteristics of objects in response to electromagnetic stimuli. Some examples of such properties include reflective and specular characteristics of a surface.
Consider hydrology, that is, an attribute describing some aspect of the flow of water at a location or on a surface. For the <Polygon> instances that represent Salmon Creek, an example hydrology property represented by <Property Value> instances is the average speed of currents in the stream bed.
<Property Value> instances can provide metrics, measurements that that relate to scalar properties, such as the elevation at a particular location.
