Class Name: EDCS Use Summary Item

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class specifies a pattern of EDCS codes that appears within the scope being summarized, specifically, an ECC and a set of and a set of EACs that are used with it, or just an individual EAC.

The <Classification Data> instance, which may be qualified by <Property Value> instances, represents the (potentially qualified) classification being described, if any.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

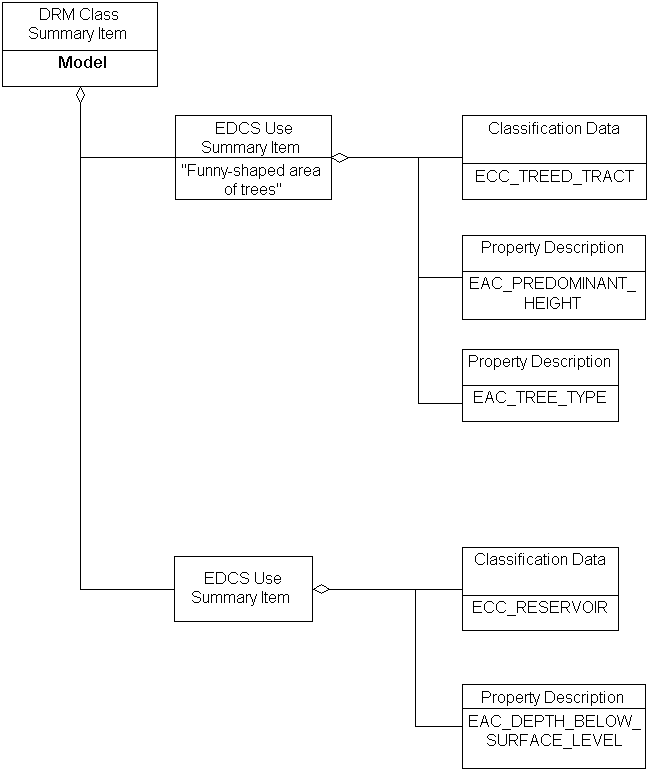

A transmittal containing two different <Model> instances, one classified using ECC_TREED_TRACT with attributes and the other using ECC_RESERVOIR with attributes.

FAQs

No FAQs supplied.

Constraints

<<Publishable Object>>

Composed of (two-way)

zero or one <Classification Data> instance
zero or more <Property Description> instances

Component of (two-way)

zero or more <Base Summary Item> instances
zero or one <Transmittal Summary> instance

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_String	description;	(notes)

Notes

Fields Notes

description

 The description field specifies an abstract, human-readable
 description of the "overall" classification specified by
 the given instance; may be empty.
