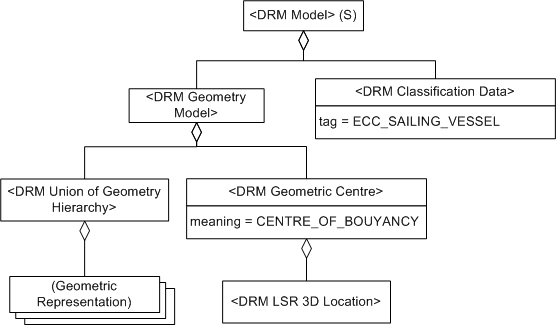

Consider a <Model> instance S providing a
geometric representation of an environmental object
classified as an ECC_SAILING_VESSEL
as depicted in
If S is instanced in a simulation where S is considered to be floating on water, the effects of the force of the water upon S can be computed for the <Geometric Centre> instance with meaning = SE_GEOM_CTR_CODE_CENTRE_OF_BUOYANCY to determine how they apply to S as a whole.

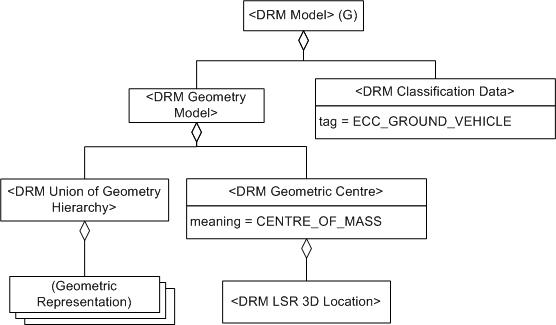

Consider a <Model> instance G providing a
geometric representation of an environmental object classified as
an ECC_GROUND_VEHICLE
as depicted in
If G is instanced in a simulation where G is considered to be in a gravitational field, the effects of gravity upon G can be computed for the <Geometric Centre> instance with meaning = SE_GEOM_CTR_CODE_CENTRE_OF_MASS to determine how they apply to G as a whole.

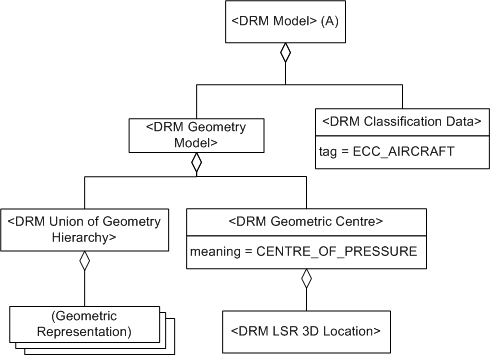

Consider a <Model> instance A providing a
geometric representation of an environmental object classified as
an ECC_AIRCRAFT
as depicted in
If A is instanced in a simulation where A is considered to be in the air, the effects of the force of the air upon A can be computed for the <Geometric Centre> instance with meaning = SE_GEOM_CTR_CODE_CENTRE_OF_PRESSURE to determine how they apply to A as a whole.
