The SEDRIS Data Representation Model
APPENDIX A - Classes
External Feature Face Ring

Class Name: External Feature Face Ring

Superclass - <Feature Face Ring>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class specifies the one-way topological relationship of a <Regular Feature Face> to the ordered collection of <Feature Edge> instances that define its outer boundary.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

  1. Consider an <Areal Feature> L representing an ECC_LAKE. The topology of L is represented by a <Regular Feature Face>, the outer boundary of which is defined by 2 <Feature Edge> instances, one defining the north shore of the ECC_LAKE, the other defining the south shore.

    To indicate that these 2 <Feature Edge> instances define the outer boundary of the ECC_LAKE, they are components of an <External Feature Face Ring>, which is in turn a component of the <Regular Feature Face> specifying the topology of L. The <Edge Direction> associated with each <Feature Edge> indicates its orientation with respect to the <External Feature Face Ring>.

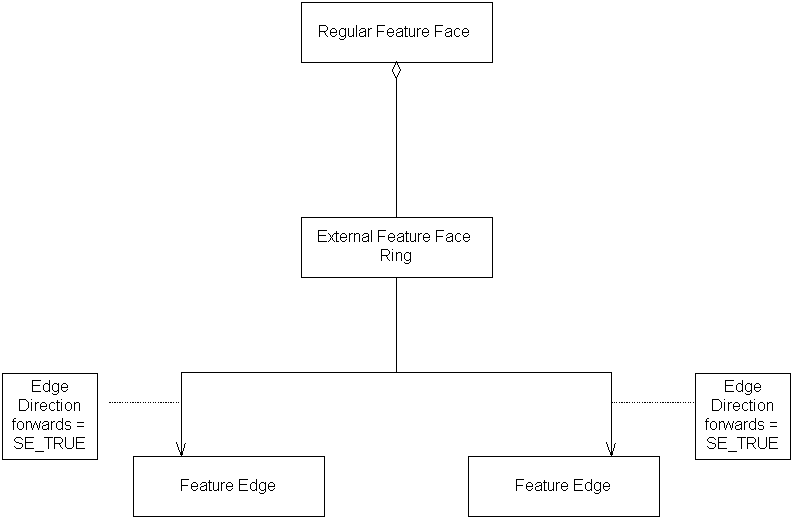

    External Feature Face Ring, Example 1

FAQs

Can the same <Feature Edge> appear more than once in the collection of <Feature Edge> instances to which an <External Feature Face Ring> is associated?

Yes. If the <Feature Edge> is contained within the outer boundary of the <Regular Feature Face>, and is attached to the outer boundary of the <Regular Feature Face>, such that it has the <Regular Feature Face> on both sides, it will appear exactly twice in the <External Feature Face Ring>, once with each orientation.

Constraints

Associated to (one-way)(inherited)

Component of (two-way)

Inherited Field Elements

This class has no inherited field elements.
