Class

• <DRM Colour Index Control Link>

Superclass

• <DRM Control Link>

Subclass

• None.

Definition

An instance of this DRM class specifies an <DRM Expression> instance that determines the index field value and / or an <DRM Expression> instance that determines the intensity_level field value of all target <DRM Colour Index> instances, thus controlling which <DRM Primitive Colour> instance is referenced by each such <DRM Colour Index> instance and / or its intensity.

Note that since each controlled <DRM Colour Index> instance may be bound to a different <DRM Colour Table Group> instance, and thus to a different primary <DRM Colour Table> instance; the fact that their index values are the same does not mean that the set of <DRM Colour Index> instances controlled by a given <DRM Colour Index Control Link> instance reference the same <DRM Primitive Colour> instance.

The colour_index field specifies which <DRM Expression> component, if any, specifies the index field value of the affected <DRM Colour Index> instances. If this value is zero, the index field values of the <DRM Colour Index> instances are not controlled.

The intensity_level_index field specifies which <DRM Expression> component, if any, specifies the intensity_level field value of the affected <DRM Colour Index> instances. If this value is zero, the intensity_level field values of the <DRM Colour Index> instances are not controlled.

Class diagram

Figure 6.43 — DRM_Colour_Index_Control_Link

Constraints

• Publishable Object

Example(s)

• Consider a <DRM Geometry Model> within a <DRM Model> representing a tree, where the geometry consists of a single Polygon defined with <DRM Stamp Behaviour>.

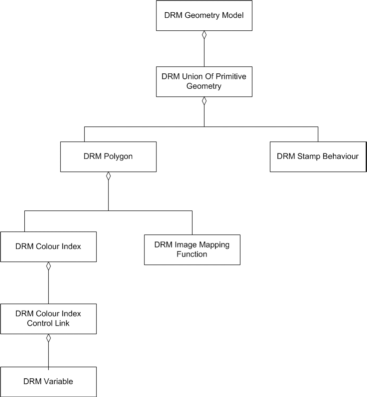

  Figure 6.44 — <DRM Colour Index Control Link> example
