srm::SRF_ObliqueMercatorSpherical Class Reference

SRF_ObliqueMercatorSpherical class declaration. More...

#include <ObliqueMercatorSpherical.h>

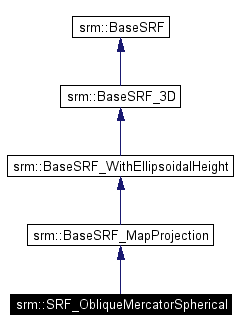

Inheritance diagram for srm::SRF_ObliqueMercatorSpherical:

[legend]Collaboration diagram for srm::SRF_ObliqueMercatorSpherical:

[legend]List of all members.

Public Member Functions
Coord3D *	createCoordinate3D (SRM_Long_Float coord_comp1, SRM_Long_Float coord_comp2, SRM_Long_Float coord_comp3)
	Returns a 3D coordinate object.
CoordSurf *	createSurfaceCoordinate (SRM_Long_Float coord_surf_comp1, SRM_Long_Float coord_surf_comp2)
	Returns a surface coordinate object.
const SRM_Oblique_Mercator_Parameters &	getSRFParameters () const
	Returns a reference to the SRF parameter structure.
SRM_Long_Float	get_longitude1 () const
	Returns the longitude1 SRF parameter value.
SRM_Long_Float	get_latitude1 () const
	Returns the latitude1 SRF parameter value.
SRM_Long_Float	get_longitude2 () const
	Returns the longitude2 SRF parameter value.
SRM_Long_Float	get_latitude2 () const
	Returns the latitude2 SRF parameter value.
SRM_Long_Float	get_central_scale () const
	Returns the central_scale SRF parameter value.
SRM_Long_Float	get_false_easting () const
	Returns the false_easting SRF parameter value.
SRM_Long_Float	get_false_northing () const
	Returns the false_northing SRF parameter value.
virtual bool	isA (SRF_ClassType type) const
	Returns true if this SRF is of the given class type.
virtual SRF_ClassType	getClassType () const
	Returns the class type of this SRF instance.
bool	isEqual (const SRF_ObliqueMercatorSpherical &srf) const
	Returns true is the SRF parameters are equal.
SRF_ObliqueMercatorSpherical *	makeCopy () const
	Returns a copy of this SRF object.
const char *	toString ()
	Returns char* of parameter names and their values.
Static Public Member Functions
SRF_ObliqueMercatorSpherical *	create (const SRM_ORM_Code orm, const SRM_RT_Code rt, const SRM_Oblique_Mercator_Parameters &params)
	Constructor by SRF parameter structure.
SRF_ObliqueMercatorSpherical *	create (SRM_ORM_Code orm, SRM_RT_Code rt, SRM_Long_Float longitude1, SRM_Long_Float latitude1, SRM_Long_Float longitude2, SRM_Long_Float latitude2, SRM_Long_Float central_scale, SRM_Long_Float false_easting, SRM_Long_Float false_northing)
	Constructor by individual SRF parameters.
SRF_ObliqueMercatorSpherical *	create (SRM_SRF_Parameters_Info srf_params)
	SRF_ObliqueMercatorSpherical constructor by SRF parameter structure.
Protected Member Functions
	SRF_ObliqueMercatorSpherical (void *impl)
	No stack allocation.
SRF_ObliqueMercatorSpherical &	operator= (const BaseSRF &)
	No copy constructor.
virtual	~SRF_ObliqueMercatorSpherical ()
	Use release().
Friends
class	BaseSRF
class	BaseSRF_3D
class	BaseSRF_WithEllipsoidalHeight

---

Detailed Description

SRF_ObliqueMercatorSpherical class declaration.

SRFs are allocated by the API, and when no longer needed they should be released by calling the release() method.

Author:

David Shen

See also:

BaseSRF_MapProjection

Definition at line 33 of file ObliqueMercatorSpherical.h.

---

Member Function Documentation

SRF_ObliqueMercatorSpherical* srm::SRF_ObliqueMercatorSpherical::create (  SRM_SRF_Parameters_Info  srf_params  )  [inline, static]

SRF_ObliqueMercatorSpherical constructor by SRF parameter structure. Exceptions: This  method throws srm::Exception Definition at line 62 of file ObliqueMercatorSpherical.h.

SRF_ObliqueMercatorSpherical* srm::SRF_ObliqueMercatorSpherical::create (  SRM_ORM_Code  orm, SRM_RT_Code  rt, SRM_Long_Float  longitude1, SRM_Long_Float  latitude1, SRM_Long_Float  longitude2, SRM_Long_Float  latitude2, SRM_Long_Float  central_scale, SRM_Long_Float  false_easting, SRM_Long_Float  false_northing )  [static]

Constructor by individual SRF parameters. Exceptions: This  method throws srm::Exception

SRF_ObliqueMercatorSpherical* srm::SRF_ObliqueMercatorSpherical::create (  const SRM_ORM_Code  orm, const SRM_RT_Code  rt, const SRM_Oblique_Mercator_Parameters &  params )  [static]

Constructor by SRF parameter structure. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_central_scale (   )  const

Returns the central_scale SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_false_easting (   )  const

Returns the false_easting SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_false_northing (   )  const

Returns the false_northing SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_latitude1 (   )  const

Returns the latitude1 SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_latitude2 (   )  const

Returns the latitude2 SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_longitude1 (   )  const

Returns the longitude1 SRF parameter value. Exceptions: This  method throws srm::Exception

SRM_Long_Float srm::SRF_ObliqueMercatorSpherical::get_longitude2 (   )  const

Returns the longitude2 SRF parameter value. Exceptions: This  method throws srm::Exception

const SRM_Oblique_Mercator_Parameters& srm::SRF_ObliqueMercatorSpherical::getSRFParameters (   )  const

Returns a reference to the SRF parameter structure. Exceptions: This  method throws srm::Exception

SRF_ObliqueMercatorSpherical* srm::SRF_ObliqueMercatorSpherical::makeCopy (   )  const

Returns a copy of this SRF object. Exceptions: This  method throws srm::Exception

const char* srm::SRF_ObliqueMercatorSpherical::toString (   )  [virtual]

Returns char* of parameter names and their values. Exceptions: This  method throws srm::Exception Implements srm::BaseSRF.

---

The documentation for this class was generated from the following file:

• ObliqueMercatorSpherical.h

---
