srm::BaseSRF_WithTangentPlaneSurface Class Reference

The BaseSRF_WithTangentPlaneSurface abstract class is the base class for the 3D SRFs with tangent plane surfaces. More...

#include <BaseSRF.h>

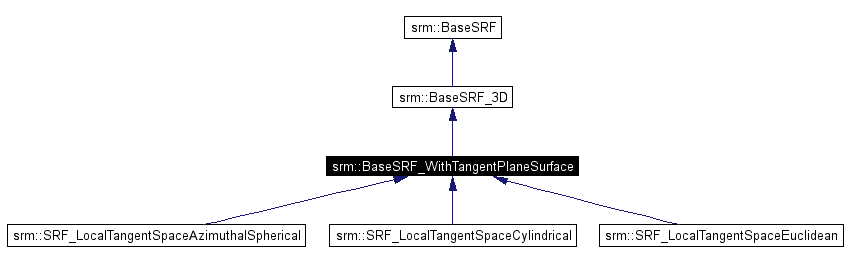

Inheritance diagram for srm::BaseSRF_WithTangentPlaneSurface:

[legend]Collaboration diagram for srm::BaseSRF_WithTangentPlaneSurface:

[legend]List of all members.

Public Member Functions
virtual bool	isA (SRF_ClassType type) const
	Returns true if this SRF is of the given class type.
virtual CoordSurf *	createSurfaceCoordinate (SRM_Long_Float coord_surf_comp1, SRM_Long_Float coord_surf_comp2)=0
	Creates a surface coordinate object.
virtual void	getSurfaceCoordinateValues (const CoordSurf &coord_surf, SRM_Long_Float &coord_surf_comp1, SRM_Long_Float &coord_surf_comp2) const
	Retrieves a coordinate surface component values.
virtual void	freeSurfaceCoordinate (CoordSurf *coord_surf)
	Frees a surface coordinate object.
virtual void	getAssociatedSurfaceCoordinate (const Coord3D &coord, CoordSurf &on_surface_coord)
	Returns a surface coordinate associated with a 3D coordinate.
virtual void	getPromotedSurfaceCoordinate (const CoordSurf &surf_coord, Coord3D &three_d_coord)
	Returns a 3D coordinate representing the same location as specified by a surface coordinate.
Static Public Member Functions
SRM_Long_Float	calculateEuclideanDistance (const CoordSurf &coord1, const CoordSurf &coord2)
	Returns the euclidean distance (in metres) between two surface coordinates.
Protected Member Functions
	BaseSRF_WithTangentPlaneSurface (void *impl)
	No stack allocation.
BaseSRF_WithTangentPlaneSurface &	operator= (const BaseSRF &)
	No copy constructor.
virtual	~BaseSRF_WithTangentPlaneSurface ()
	Use release().

---

Detailed Description

The BaseSRF_WithTangentPlaneSurface abstract class is the base class for the 3D SRFs with tangent plane surfaces.

SRFs are allocated by the API, and when no longer needed they should be released by calling the release() method.

Author:

See also:

BaseSRF_3D, BaseSRF

Definition at line 933 of file BaseSRF.h.

---

Member Function Documentation

SRM_Long_Float srm::BaseSRF_WithTangentPlaneSurface::calculateEuclideanDistance (  const CoordSurf &  coord1, const CoordSurf &  coord2 )  [static]

Returns the euclidean distance (in metres) between two surface coordinates. Note: The input coordinates can be created from any SRF. Exceptions: This  method throws srm::Exception

virtual CoordSurf* srm::BaseSRF_WithTangentPlaneSurface::createSurfaceCoordinate (  SRM_Long_Float  coord_surf_comp1, SRM_Long_Float  coord_surf_comp2 )  [pure virtual]

Creates a surface coordinate object. Exceptions: This  method throws srm::Exception Implemented in srm::SRF_LocalTangentSpaceAzimuthalSpherical, srm::SRF_LocalTangentSpaceCylindrical, and srm::SRF_LocalTangentSpaceEuclidean.

virtual void srm::BaseSRF_WithTangentPlaneSurface::freeSurfaceCoordinate (  CoordSurf *  coord_surf  )  [virtual]

Frees a surface coordinate object. Exceptions: This  method throws srm::Exception

virtual void srm::BaseSRF_WithTangentPlaneSurface::getAssociatedSurfaceCoordinate (  const Coord3D &  coord, CoordSurf &  on_surface_coord )  [virtual]

Returns a surface coordinate associated with a 3D coordinate. Exceptions: This  method throws srm::Exception

virtual void srm::BaseSRF_WithTangentPlaneSurface::getPromotedSurfaceCoordinate (  const CoordSurf &  surf_coord, Coord3D &  three_d_coord )  [virtual]

Returns a 3D coordinate representing the same location as specified by a surface coordinate. Exceptions: This  method throws srm::Exception

virtual void srm::BaseSRF_WithTangentPlaneSurface::getSurfaceCoordinateValues (  const CoordSurf &  coord_surf, SRM_Long_Float &  coord_surf_comp1, SRM_Long_Float &  coord_surf_comp2 )  const [virtual]

Retrieves a coordinate surface component values. Exceptions: This  method throws srm::Exception

---

The documentation for this class was generated from the following file:

• BaseSRF.h

---
