The SEDRIS Data Representation Model
APPENDIX A - Classes
SRF Summary

Class Name: SRF Summary

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class specifies that the SRF identified by the srf_context_info field is used by at least one instance of the DRM class being summarized by the aggregating <DRM Class Summary Item> instance.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

  1. Consider a transmittal containing terrain geometry, an oceanographic <Property Grid> instance, an atmospheric <Property Grid> instance, and a number of <Model> instances. The terrain is in one SRF, the oceanographic <Property Grid> instance in another, the atmospheric <Property Grid> instance in a third, and some of the <Model> instances in a fourth (in this example, LSR). This situation can be summarized as depicted in Figure 6.65 where appropriate <SRF Summary> instances are components of the respective <DRM Class Summary Item> instances.

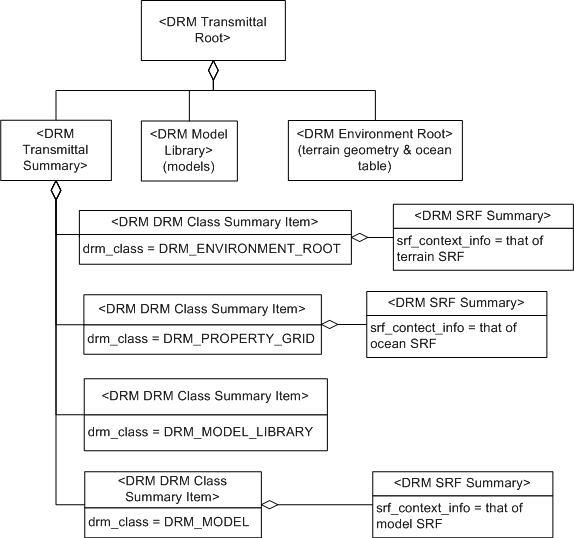

    SRF Summary, Example 1

    Figure 65 — <DRM SRF Summary> example

  2. Consider a transmittal in which the environment being represented covers two adjacent cells in GTRS Global Coordinate System SRFs. The data provider represents this by creating a <Transmittal Root> instance with two <Environment Root> components, one for each GTRS GCS SRF.

FAQs

No FAQs supplied.

Constraints

Component of (two-way)

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_SRF_Context_Info srf_context_info; 1

Notes

Fields Notes

srf_context_info

The srf_context_info field specifies the SRF being identified.
