The SEDRIS Data Representation Model
APPENDIX A - Classes
Reference Vector

Class Name: Reference Vector

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class specifies a unit vector, the meaning of which is specified by its vector_type field.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

Example

  1. Consider a <Polygon> instance specified in a 3D LSR SRF for which a data provider wishes to explicitly provide the surface normal vector so that consumers do not need to calculate the surface normal when consuming that particular <Polygon> instance. The data provider specifies this vector information as a <Reference Vector> component of the <Polygon> instance as depicted in Figure 6.55:

    Reference Vector, Example 1

    Figure 55 — <DRM Reference Vector> surface normal example

    Since the <Reference Vector> instance is a component of a <Polygon> instance, it specifies an <LSR 3D Location> component in order to comply with <<Required Reference Vector Location>>.

  2. Consider a <Reference Vector> instance, contained by a <Polygon> instance, representing a normal vector that is used for rendering purposes (that is, to calculate colour and shading when rendering the <Polygon> instance). This <Reference Vector> instance has a vector_type of SE_REFVEC_RENDERING_NORMAL.

  3. Consider a <Polygon> instance F classified as ECC_FENCE, where F is a quadrilateral. F is instanced on some terrain representation, such that the plane of F is perpendicular to the surrounding terrain.

    F has radar cross sections that are dependent on aspect angles (azimuth and elevation). These aspect angles are defined with respect to F's normal vector and F's azimuth vector. Consequently, F has two <Reference Vector> components as depicted in Figure 6.56:

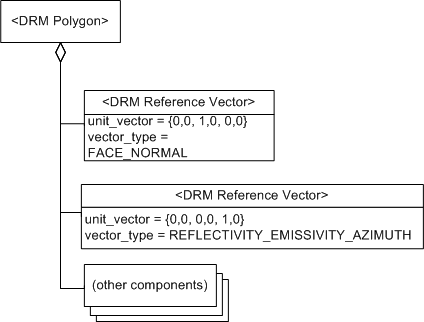

    Reference Vector, Example 3, Diagram 1

    Figure 56 — <DRM Reference Vector> radar cross section example

    The SE_REFVEC_FACE_NORMAL <Reference Vector> component is the unit vector that is perpendicular to the plane of F and points away from F on its outside face. The azimuth <Reference Vector> component is the unit vector that lies in the plane of F and points straight up.

  4. A segment of the road has a retroreflector (a device that reflects emissions back along the incident path irrespective of its angle of incidence) on it and is modelled as a <Line> instance. The <Line> instance has a normal vector that is perpendicular to it and an azimuth reference parallel to it. This is sufficient to describe radar cross sections of the road as a function of aspect angles. However, the normal vector for the infrared bands depends on the orientation of the retroreflector, not the road. This is because radars see the road but infrared see the retroreflector. In this example, the <Line> instance has four <Reference Vector> components (radar-normal, radar-azimuth, infrared-normal, and infrared-azimuth).

  5. A normal vector used for reflectivity/emissivity calculations is represented by a <Reference Vector> instance with vector_type = SE_REFVEC_REFLECTIVITY_EMISSIVITY_NORMAL.

  6. A vector specifying the direction of illumination of an <Infinite Light> instance is represented by a <Reference Vector> component with vector_type = SE_REFVEC_LIGHT_DIRECTION.

FAQs

Why does SE_Reference_Vector_Type have so many entries that appear to be mathematically similar, such as the several different varieties of normal?

In the general case, a location on an environmental object may have distinct vectors for each of these SE_Reference_Vector_Type entries, although in specific instances such vectors may coincide with one another.

For example, consider a large flat window, represented by a <Polygon> instance. The geometric normal (SE_REFVEC_FACE_NORMAL) in this example coincides with the radar SE_REFVEC_EMISSIVITY_NORMAL and with the infrared SE_REFVEC_EMISSIVITY_NORMAL.

However, consider a more complex geometric representation - in this example, a representation of an aircraft. Here the SE_REFVEC_FACE_NORMAL is not applicable, and the radar and infrared SE_REFVEC_EMISSIVITY_NORMAL <Reference Vector> instances do not coincide.

Why can a <Vertex> instance have only one <Reference Vector> component, when a <Primitive Geometry> instance can have more than one?

A <Vertex> instance, unlike a <Primitive Geometry> instance such as a <Point> instance, does not represent an environmental object, but only part of an environmental object.


Examples:


To fully describe aspect dependent characteristics as part of the representation of an environmental object, the representation requires at least two <Reference Vector> components, one specifying a normal and the other an azimuth. In addition, a representation of an environmental object may need to represent a combination of geometric and/or sensor-related vectors simultaneously.

Since a <Vertex> instance does not itself constitute a representation of an environmental object, it does not require the capability of specifying multiple <Reference Vector> components. However, a <Vertex> instance may need a SE_REFVEC_RENDERING_NORMAL <Reference Vector> component for use in smooth shading, so a single <Reference Vector> component may be needed for a given <Vertex> instance.

Why does a <Reference Vector> instance have an optional <Location> component, and if the <Location> component is needed to support functionality, why is it optional?

The SEDRIS API provides the capability of converting <Reference Vector> instances between SRFs. These SRFs include non-vector space coordinates, such as CD. To support those cases, a <Reference Vector> instance requires the ability to specify a <Location> component.

However, in most contexts where a <Reference Vector> instance can appear in a transmittal, the <Reference Vector> instance inherits the appropriate <Location> component from its context, and does not require a direct <Location> component. See <<Required Reference Vector Location>> for the cases where an appropriate <Location> instance cannot be inherited, so that the data provider is required to specify such a component directly for the <Reference Vector> instance.

Constraints

Composed of (two-way)

Component of (two-way)

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SRM_Vector_3D unit_vector; 1
SE_Reference_Vector_Type vector_type; 2

Notes

Fields Notes

unit_vector

The unit_vector field specifies the unit vector. For a <Reference Vector> instance with a <Reference Vector Control Link> component X, the value of the unit_vector field is obtained from X.

vector_type

The vector_type field specifies the semantic meaning of the vector data being represented by the <Reference Vector> instance.
