SRM.BaseSRF_3D Class Reference

The BaseSRF_3D abstract class is the base class for the 3D SRFs. More...

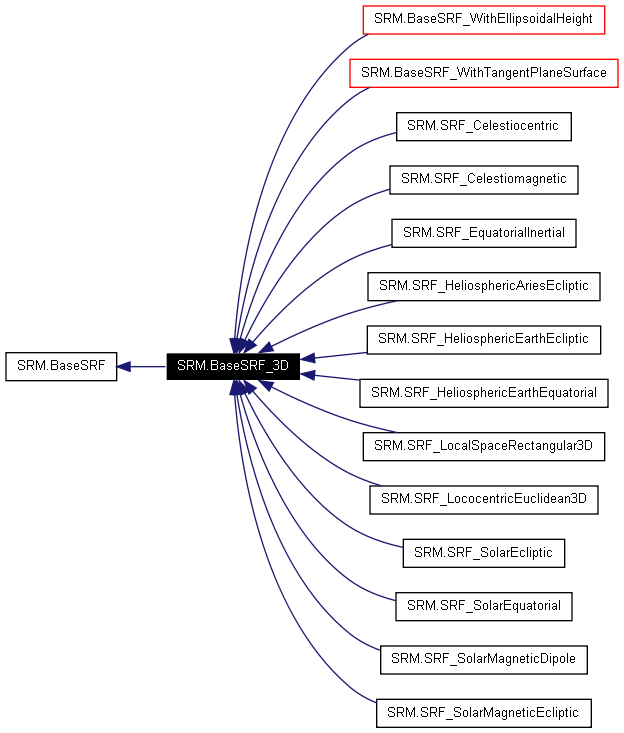

Inheritance diagram for SRM.BaseSRF_3D:

Inheritance graph
[legend]
List of all members.

Public Member Functions

abstract Coord3D createCoordinate3D ()
 Creates a 3D coordinate object.

abstract Coord3D createCoordinate3D (double coord_comp1, double coord_comp2, double coord_comp3)
 Creates a 3D coordinate object.

double[] getCoordinate3DValues (Coord3D coord) throws SrmException
 Retrieves the 3D coordinate component values.

SRM_Coordinate_Valid_Region_Code changeCoordinate3DSRF (Coord3D src, Coord3D tgt) throws SrmException
 Changes a coordinate's values to this SRF.

int changeCoordinate3DArraySRF (Coord3D[] src, Coord3D[] tgt, SRM_Coordinate_Valid_Region_Code[] region) throws SrmException
 Changes an array of 3D coordinate to this SRF.

void setValidRegion (int component, SRM_Interval_Type type, double lower, double upper) throws SrmException
 Set the Valid Region for this SRF.

void setExtendedValidRegion (int component, SRM_Interval_Type type, double extended_lower, double lower, double upper, double extended_upper) throws SrmException
 Set the Extended Valid Region for this SRF.

SRM_Valid_Region_Params getValidRegion (int component) throws SrmException
 Get the Valid Region for this SRF.

SRM_Extended_Valid_Region_Params getExtendedValidRegion (int component) throws SrmException
 Get the Extended Valid Region for this SRF.

SRM_Coordinate_Valid_Region_Code changeCoordinate3DSRFObject (Coord3D src, SRM_ORM_Trans_3D_Params hst, Coord3D tgt) throws SrmException
 Changes a coordinate's values to this SRF using tranformation object.

int changeCoordinate3DArraySRFObject (Coord3D[] src, SRM_ORM_Trans_3D_Params hst, Coord3D[] tgt, SRM_Coordinate_Valid_Region_Code[] region) throws SrmException
 Changes an array of coordinates to this SRF using tranformation object.

Direction createDirection (Coord3D ref_coord, double vec[]) throws SrmException
 Creates a direction object.

Direction createDirection () throws SrmException
 Creates a direction object with reference location and vector components as Double.NaN.

void getDirectionValues (Direction direction, Coord3D ref_coord, double vec[]) throws SrmException
 Retrieves the direction component values.

SRM_Coordinate_Valid_Region_Code changeDirectionSRF (Direction src_dir, Direction tgt_dir) throws SrmException
 Changes a direction's reference coordinate and vector to this SRF.

int changeDirectionArraySRF (Direction[] src_dir, Direction[] tgt_dir, SRM_Coordinate_Valid_Region_Code[] region) throws SrmException
 Changes an array of directions to this SRF.

SRM_Coordinate_Valid_Region_Code changeDirectionSRFObject (Direction src_dir, SRM_ORM_Trans_3D_Params hst, Direction tgt_dir) throws SrmException
 Changes a direction's values to this SRF using tranformation object.

int changeDirectionArraySRFObject (Direction[] src_dir, SRM_ORM_Trans_3D_Params hst, Direction[] tgt_dir, SRM_Coordinate_Valid_Region_Code[] region) throws SrmException
 Changes an array of directions to this SRF using tranformation object.

SRM_Coordinate_Valid_Region_Code checkDirection (Direction direction) throws SrmException
 Check a direction in this SRF.

Orientation createOrientation (Coord3D ref_coord, double mtx[][]) throws SrmException
 Creates an orientation object.

Orientation createOrientation (Coord3D ref_coord, Direction dir1, Direction dir2, Direction dir3) throws SrmException
 Creates an Orientation object with a reference location and three Direction objects as the 3x3 Orientation matrix.

Orientation createOrientation () throws SrmException
 Creates an Orientation object with a reference location and matrix components as Double.NaN.

void getOrientationValues (Orientation orientation, Coord3D ref_coord, double mtx[][]) throws SrmException
 Retrieves the orientation component values.

SRM_Coordinate_Valid_Region_Code checkOrientation (Orientation orientation) throws SrmException
 Check an orientation in this SRF.

SRM_Coordinate_Valid_Region_Code changeOrientationSRF (Orientation src_ori, Orientation tgt_ori) throws SrmException
 Changes an orientation's values to this SRF.

Coord3D instanceAbstractSpaceCoordinate (Coord3D src_coord, Orientation orientation) throws SrmException
 Instances a 3D source coordinate and orientation into this SRF.

SRM_SRFSM_Code getNaturalSRFSetMemberCode (Coord3D src_coord, SRM_ORM_Code orm_dst, SRM_RT_Code rt_dst, SRM_SRFS_Code tgt_srfs) throws SrmException
 Computes the natural SRF Set member code (region) where the 3D coordinate is located in the target SRF Set.

BaseSRF_3D getNaturalSRFSetMember (Coord3D src_coord, SRM_ORM_Code orm_dst, SRM_RT_Code rt_dst, SRM_SRFS_Code tgt_srfs) throws SrmException
 Returns the natural SRF Set member instance that the 3D coordinate is located in the target SRF Set.


Static Public Member Functions

double calculateEuclideanDistance (Coord3D coord1, Coord3D coord2) throws SrmException
 Returns the euclidean distance between two coordinates.


Protected Member Functions

SRM_SRFSM_Code getMemberCode (double[] src_coord, SRM_ORM_Code orm_dst, SRM_RT_Code rt_dst, SRM_SRFS_Code tgt_srfs) throws SrmException

Protected Attributes

SRM_Extended_Valid_Region_Params[] _component_valid_region
 member data for the geodetic valid region

boolean[] _component_is_angular = { false, false, false }
 boolean flag indicating whether the coordinate component associated with this SRF is angular

Detailed Description

The BaseSRF_3D abstract class is the base class for the 3D SRFs.

Author:
David Shen
See also:
BaseSRF, BaseSRF_2D

Member Function Documentation

double SRM.BaseSRF_3D.calculateEuclideanDistance (  Coord3D  coord1,
Coord3D  coord2
)  throws SrmException [static]


Returns the euclidean distance between two coordinates.

Parameters:
coord1 in: a coordinate in some SRF
coord2 in: a coordinate in some SRF
Returns:
the Euclidean distance between the two Coord3D coordinates (in meters).
Note:
The input coordinates do not need to be from the same SRF.

This method will make (and cache) internal conversions when the inputs coordinates are from SRFs other than SRF_Celestiocentric.

int SRM.BaseSRF_3D.changeCoordinate3DArraySRF (  Coord3D  src[],
Coord3D  tgt[],
SRM_Coordinate_Valid_Region_Code  region[]
)  throws SrmException


Changes an array of 3D coordinate to this SRF.

Note:
all the arrays must be of same length.

all the coordinate in an array must be associated with the same SRF.

the returned integer value will be the length of the array plus one to indicate that the operation successfully converted all the coordinates in the source array. Otherwise, the return value is the index of the offending coordinate in the source array.

Parameters:
src in: the array of source 3D coordinate in some other 3D SRF
tgt out: the array of target coordinate in this 3D SRF
region out: the array of valid region associated with the array of target coordinates
Returns:
the index of the offending coordinate in the source array when an error condition occurs. Otherwise, it is the size of the source array plus one.

int SRM.BaseSRF_3D.changeCoordinate3DArraySRFObject (  Coord3D  src[],
SRM_ORM_Trans_3D_Params  hst,
Coord3D  tgt[],
SRM_Coordinate_Valid_Region_Code  region[]
)  throws SrmException


Changes an array of coordinates to this SRF using tranformation object.

Note:
The tgt coordinates in the tgt array must have been created using this SRF.

The value of omega_1, omega_2 and omega_3 for hst must be within the range (-2_PI, 2_PI).

The value of delta_s for hst must be stricly greater than -1.0.

all the arrays must be of same length.

all the coordinate in an array must be associated with the same SRF.

the returned integer value will be the length of the array plus one to indicate that the operation successfully converted all the ccordinates in the source array. Otherwise, the return value is the index of the offending coordinate in the source array.

Parameters:
src in: the array of source coordinates in some other 3D SRF
hst in: the ORM 3D transformation object
tgt out: the array of target coordinates in this 3D SRF
region out: the array of valid region associated with the array of target coordinates
Returns:
the index of the offending coordinate in the source array when an error condition occurs. Otherwise, it is the size of the source array plus one.

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.changeCoordinate3DSRF (  Coord3D  src,
Coord3D  tgt
)  throws SrmException


Changes a coordinate's values to this SRF.

Parameters:
src in: the source 3D coordinate in some other 3D SRF
tgt in out: the target coordinate in this 3D SRF
Returns:
the Valid Region of the target coordinate

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.changeCoordinate3DSRFObject (  Coord3D  src,
SRM_ORM_Trans_3D_Params  hst,
Coord3D  tgt
)  throws SrmException


Changes a coordinate's values to this SRF using tranformation object.

Note:
The tgt coordinate must have been created using this SRF.

The value of omega_1, omega_2 and omega_3 for hst must be within the range (-2_PI, 2_PI).

The value of delta_s for hst must be stricly greater than -1.0.

Parameters:
src in: the source coordinate in some other 3D SRF
hst in: the ORM 3D transformation
tgt in out: the target coordinate in this 3D SRF
Returns:
the Valid Region of the target coordinate

int SRM.BaseSRF_3D.changeDirectionArraySRF (  Direction  src_dir[],
Direction  tgt_dir[],
SRM_Coordinate_Valid_Region_Code  region[]
)  throws SrmException


Changes an array of directions to this SRF.

Note:
all the arrays must be of same length.

all the directions in an array must be associated with the same SRF.

the returned integer value will be the length of the array plus one to indicate that the operation successfully converted all the directions in the source array. Otherwise, the return value is the index of the offending direction in the source array.

Parameters:
src_dir in: the array of source direction in some other 3D SRF
tgt_dir out: the array of target direction in this 3D SRF
region out: the array of valid region associated with the array of target direction
Returns:
the index of the offending direction in the source array when an error condition occurs. Otherwise, it is the size of the source array plus one.

int SRM.BaseSRF_3D.changeDirectionArraySRFObject (  Direction  src_dir[],
SRM_ORM_Trans_3D_Params  hst,
Direction  tgt_dir[],
SRM_Coordinate_Valid_Region_Code  region[]
)  throws SrmException


Changes an array of directions to this SRF using tranformation object.

Note:
all the arrays must be of same length.

all the directions in an array must be associated with the same SRF.

the returned integer value will be the length of the array plus one to indicate that the operation successfully converted all the directions in the source array. Otherwise, the return value is the index of the offending direction in the source array.

The value of omega_1, omega_2 and omega_3 for hst must be within the range (-2_PI, 2_PI).

The value of delta_s for hst must be stricly greater than -1.0.

Parameters:
src_dir in: the array of source direction in some other 3D SRF
hst in: the ORM 3D transformation
tgt_dir out: the array of target direction in this 3D SRF
region out: the array of valid region associated with the array of target direction
Returns:
the index of the offending direction in the source array when an error condition occurs. Otherwise, it is the size of the source array plus one.

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.changeDirectionSRF (  Direction  src_dir,
Direction  tgt_dir
)  throws SrmException


Changes a direction's reference coordinate and vector to this SRF.

Parameters:
src_dir in: the source direction in some other SRF
tgt_dir out: the target direction in this SRF

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.changeDirectionSRFObject (  Direction  src_dir,
SRM_ORM_Trans_3D_Params  hst,
Direction  tgt_dir
)  throws SrmException


Changes a direction's values to this SRF using tranformation object.

Note:
The tgt direction must have been created using this SRF.

The value of omega_1, omega_2 and omega_3 for hst must be within the range (-2_PI, 2_PI).

The value of delta_s for hst must be stricly greater than -1.0.

Parameters:
src_dir in: the source direction in some other SRF
hst in: the ORM 3D transformation
tgt_dir out: the target direction in this SRF
Returns:
valid region category for the reference location associated with the target direction

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.changeOrientationSRF (  Orientation  src_ori,
Orientation  tgt_ori
)  throws SrmException


Changes an orientation's values to this SRF.

Parameters:
src_ori in: the source orientation in some other SRF
Returns:
the destination orientation in this SRF

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.checkDirection (  Direction  direction  )  throws SrmException


Check a direction in this SRF.

Note:
The input direction object must have been created using this SRF.
Parameters:
direction in: the direction in this SRF
Returns:
the coordinate valid region code in the direction's SRF

SRM_Coordinate_Valid_Region_Code SRM.BaseSRF_3D.checkOrientation (  Orientation  orientation  )  throws SrmException


Check an orientation in this SRF.

Note:
The input orientation object must have been created using this SRF.
Parameters:
orientation in: the orientation in this SRF
Returns:
the coordinate valid region code in the orientation's SRF

abstract Coord3D SRM.BaseSRF_3D.createCoordinate3D (  double  coord_comp1,
double  coord_comp2,
double  coord_comp3
)  [pure virtual]


Creates a 3D coordinate object.

Parameters:
coord_comp1 in: the values of the first component of the 3D coordinate
coord_comp2 in: the values of the second component of the 3D coordinate
coord_comp3 in: the values of the third component of the 3D coordinate
Returns:
a 3D coordinate object

Implemented in SRM.SRF_Celestiocentric, SRM.SRF_Celestiodetic, SRM.SRF_Celestiomagnetic, SRM.SRF_EquatorialInertial, SRM.SRF_EquidistantCylindrical, SRM.SRF_HeliosphericAriesEcliptic, SRM.SRF_HeliosphericEarthEcliptic, SRM.SRF_HeliosphericEarthEquatorial, SRM.SRF_LambertConformalConic, SRM.SRF_LocalSpaceRectangular3D, SRM.SRF_LocalTangentSpaceAzimuthalSpherical, SRM.SRF_LocalTangentSpaceCylindrical, SRM.SRF_LocalTangentSpaceEuclidean, SRM.SRF_LococentricEuclidean3D, SRM.SRF_Mercator, SRM.SRF_ObliqueMercatorSpherical, SRM.SRF_Planetodetic, SRM.SRF_PolarStereographic, SRM.SRF_SolarEcliptic, SRM.SRF_SolarEquatorial, SRM.SRF_SolarMagneticDipole, SRM.SRF_SolarMagneticEcliptic, and SRM.SRF_TransverseMercator.

abstract Coord3D SRM.BaseSRF_3D.createCoordinate3D (   )  [pure virtual]


Creates a 3D coordinate object.

Returns:
a 3D coordinate object
Note:
The initial coordinate value is defaulted to [ Double.NaN, Double.NaN, Double.NaN ].

Implemented in SRM.SRF_Celestiocentric, SRM.SRF_Celestiodetic, SRM.SRF_Celestiomagnetic, SRM.SRF_EquatorialInertial, SRM.SRF_EquidistantCylindrical, SRM.SRF_HeliosphericAriesEcliptic, SRM.SRF_HeliosphericEarthEcliptic, SRM.SRF_HeliosphericEarthEquatorial, SRM.SRF_LambertConformalConic, SRM.SRF_LocalSpaceRectangular3D, SRM.SRF_LocalTangentSpaceAzimuthalSpherical, SRM.SRF_LocalTangentSpaceCylindrical, SRM.SRF_LocalTangentSpaceEuclidean, SRM.SRF_LococentricEuclidean3D, SRM.SRF_Mercator, SRM.SRF_ObliqueMercatorSpherical, SRM.SRF_Planetodetic, SRM.SRF_PolarStereographic, SRM.SRF_SolarEcliptic, SRM.SRF_SolarEquatorial, SRM.SRF_SolarMagneticDipole, SRM.SRF_SolarMagneticEcliptic, and SRM.SRF_TransverseMercator.

Direction SRM.BaseSRF_3D.createDirection (   )  throws SrmException


Creates a direction object with reference location and vector components as Double.NaN.

Returns:
a direction object
Note:
This method is mainly intended for facilitating the creation of Direction objects that will be used as the target Direction for the changeDirectionSRF() method.

Direction SRM.BaseSRF_3D.createDirection (  Coord3D  ref_coord,
double  vec[]
)  throws SrmException


Creates a direction object.

Parameters:
ref_coord in: the 3D reference coordinate in this SRF.
vec[] in: the array of size 3 containing the vector component values. It can be changed after the direction is created.
Returns:
a direction object
Note:
The input reference coordinate must have been created using this SRF.

The reference coordinate cannot be changed after the direction is instantiated.

A sample code to instantiate a Direction object is as follows:
        import SRM.*;
        ...

        try {

        // first instantiate an SRF, say CD_3D SRF in WGS 1984
        SRF_Celestiodetic CdSrf = new SRF_Celestiodetic(SRM_ORM_Code.ORM_WGS_1984,
        SRM_RT_Code.RT_WGS_1984_IDENTITY);

        // then instantiate a 3D CD_3D coordinate as the reference coordinate
        Coord3D_Celestiodetic CdCoord =
        (Coord3D_Celestiodetic)CdSrf.createCoordinate3D(Math.toRadians(10.0),
        Math.toRadians(20.0),
        100.0);

        // then instantiate the Direction object by invoking the createDirection method
        Direction dir = CdSrf.createDirection(CdCoord, { 1.0, 2.0, 3.0 });

        } catch (SrmException ex)
        ...

        // Note: The input reference coordinate is immutable.

Orientation SRM.BaseSRF_3D.createOrientation (   )  throws SrmException


Creates an Orientation object with a reference location and matrix components as Double.NaN.

Returns:
an Orientation object
Note:
This method is mainly intended for facilitating the creation of Orientation objects that will be used as the target Orientation for the changeOrientationSRF() method.

Orientation SRM.BaseSRF_3D.createOrientation (  Coord3D  ref_coord,
Direction  dir1,
Direction  dir2,
Direction  dir3
)  throws SrmException


Creates an Orientation object with a reference location and three Direction objects as the 3x3 Orientation matrix.

Returns:
an Orientation object
Note:
The input reference coordinate must have been created using this SRF.

The input Direction objects must have use the same reference location as the input reference location.

Orientation SRM.BaseSRF_3D.createOrientation (  Coord3D  ref_coord,
double  mtx[][]
)  throws SrmException


Creates an orientation object.

Parameters:
ref_coord in: the 3D reference coordinate in this SRF
mtx[][] in: the 3x3 matrix containing the three vector component values
Returns:
an orientation object
Note:
The input reference coordinate must have been created using this SRF.
A sample code to instantiate an Orientation object is as follows:
        import SRM.*;
        ...

        try {

           // first instantiate a SRF, say CD_3D SRF in WGS 1984
           SRF_Celestiodetic CdSrf = new SRF_Celestiodetic(SRM_ORM_Code.ORM_WGS_1984,
                                                           SRM_RT_Code.RT_WGS_1984_IDENTITY);

           // then Instantiate a 3D CD_3D coordinate as the reference coordinate
           Coord3D_Celestiodetic CdCoord =
                (Coord3D_Celestiodetic)CdSrf.createCoordinate3D(Math.toRadians(10.0),
                                                                Math.toRadians(20.0),
                                                                100.0);
           // then allocate a 3x3 matrix
           double[][] matrix = new double[][]{ {1.0, 0.0, 0.0}, {0.0, 1.0, 0.0}, {0.0, 0.0, 1.0} };

           // then instantiate the Orientation object by invoking the createOrientation method
             Orientation ori = CdSrf.createOrientation(CdCoord, matrix);

        } catch (SrmException ex)
        ...

        // Note: The input reference coordinate is immutable.

double [] SRM.BaseSRF_3D.getCoordinate3DValues (  Coord3D  coord  )  throws SrmException


Retrieves the 3D coordinate component values.

Note:
The input coordinate must have been created using this SRF.
Parameters:
coord in: a 3D coordinate
Returns:
an array of size 3 containing the component values for the 3D coordinate

void SRM.BaseSRF_3D.getDirectionValues (  Direction  direction,
Coord3D  ref_coord,
double  vec[]
)  throws SrmException


Retrieves the direction component values.

Parameters:
direction in: the direction object
ref_coord out: the 3D reference coordinate in this SRF
vec[] out: the 3D reference coordinate in this SRF
Note:
The input direction must have been created using this SRF.

The input reference coordinate must have been created using this SRF.

SRM_Extended_Valid_Region_Params SRM.BaseSRF_3D.getExtendedValidRegion (  int  component  )  throws SrmException


Get the Extended Valid Region for this SRF.

Note:
Given a coordinate component, the last invocation of this method or the setValidRegion method determines the valid and extended valid intervals of the coordinate component values.
Parameters:
component in: the coordinate component (1, 2, or 3)
Returns:
the extended valid region parameters

BaseSRF_3D SRM.BaseSRF_3D.getNaturalSRFSetMember (  Coord3D  src_coord,
SRM_ORM_Code  orm_dst,
SRM_RT_Code  rt_dst,
SRM_SRFS_Code  tgt_srfs
)  throws SrmException


Returns the natural SRF Set member instance that the 3D coordinate is located in the target SRF Set.

Note:
The input coordinate must have been created using this SRF.
Parameters:
src_coord in : the source 3D coordinate in an SRF
orm_dst in : the ORM for the destination SRF Set
rt_dst in : the RT for the destination SRF Set
tgt_srfs in : the destination SRF Set Code
Returns:
the SRF Set Member instance for the destination SRF Set

SRM_SRFSM_Code SRM.BaseSRF_3D.getNaturalSRFSetMemberCode (  Coord3D  src_coord,
SRM_ORM_Code  orm_dst,
SRM_RT_Code  rt_dst,
SRM_SRFS_Code  tgt_srfs
)  throws SrmException


Computes the natural SRF Set member code (region) where the 3D coordinate is located in the target SRF Set.

Note:
The input coordinate must have been created using this SRF.
Parameters:
src_coord in : the source 3D coordinate in an SRF
orm_dst in : the ORM for the destination SRF Set
rt_dst in : the RT for the destination SRF Set
tgt_srfs in : the destination SRF Set Code
Returns:
the SRF Set Member code for the destination SRF Set

void SRM.BaseSRF_3D.getOrientationValues (  Orientation  orientation,
Coord3D  ref_coord,
double  mtx[][]
)  throws SrmException


Retrieves the orientation component values.

Note:
The input orientation must have been created using this SRF.

The input reference coordinate must have been created using this SRF.

Parameters:
orientation in: the orientaiton object
ref_coord out: the 3D reference coordinate in this SRF
mtx[] out: the 3D reference coordinate in this SRF

SRM_Valid_Region_Params SRM.BaseSRF_3D.getValidRegion (  int  component  )  throws SrmException


Get the Valid Region for this SRF.

Note:
Given a coordinate component, the last invocation of this method or the setExtendedValidRegion method determines the valid and extended valid intervals of the coordinate component values.
Parameters:
component in: the coordinate component (1, 2, or 3)
Returns:
the valid region parameters

Coord3D SRM.BaseSRF_3D.instanceAbstractSpaceCoordinate (  Coord3D  src_coord,
Orientation  orientation
)  throws SrmException


Instances a 3D source coordinate and orientation into this SRF.

Parameters:
src_coord in: the source coordinate to be instantiated in this SRF
orientation in: the orientation to be instantiated in this SRF
Returns:
the coordinates in this SRF

void SRM.BaseSRF_3D.setExtendedValidRegion (  int  component,
SRM_Interval_Type  type,
double  extended_lower,
double  lower,
double  upper,
double  extended_upper
)  throws SrmException


Set the Extended Valid Region for this SRF.

Note:
Given a coordinate component, the last invocation of this method or the setValidRegion method determines the valid and extended valid intervals of the coordinate component values.

Upper or Lower value is ignored if the interval is a semi-interval or unbounded.

The Lower value must be strictly less than the Upper value.

The Extended_Lower value must be strictly greater than the Lower value and the Extended_Upper value must be strictly smaller than the Lower value.

Parameters:
component in: the coordinate component (1, 2, or 3)
type in: the type of interval
extended_lower in: the extended lower value of the interval
lower in: the lower value of the interval
upper in: the upper value of the interval
extended_upper in: the extended_upper value of the interval

void SRM.BaseSRF_3D.setValidRegion (  int  component,
SRM_Interval_Type  type,
double  lower,
double  upper
)  throws SrmException


Set the Valid Region for this SRF.

Note:
Given a coordinate component, the last invocation of this method or the setExtendedValidRegion method determines the valid and extended valid intervals of the coordinate component values.

Upper or Lower value is ignored if the interval is a semi-interval or unbounded.

The Lower value must be strictly less than the Upper value.

Parameters:
component in: the coordinate component (1, 2, or 3)
type in: the type of interval
lower in: the lower value of the interval
upper in: the upper value of the interval

Member Data Documentation

SRM_Extended_Valid_Region_Params [] SRM.BaseSRF_3D._component_valid_region [protected]


Initial value:

        new SRM_Extended_Valid_Region_Params[3]
member data for the geodetic valid region

The documentation for this class was generated from the following file:
Spatial Reference Model Java API Version 4.1.4 - July 1, 2011
Copyright © 2011 SEDRIS™ Docs by Doxygen 1.3.2
