Class Name: Translation Control Link

Superclass - <Control Link>

Subclasses

Definition

An instance of this DRM class is a specialized <Control Link> instance used to provide the connection between an ordered aggregation of <Expression> instances and the target fields of a <Translation> instance.

Primary Page in DRM Diagram:

• 17

Secondary Pages in DRM Diagram:

• 7

Example

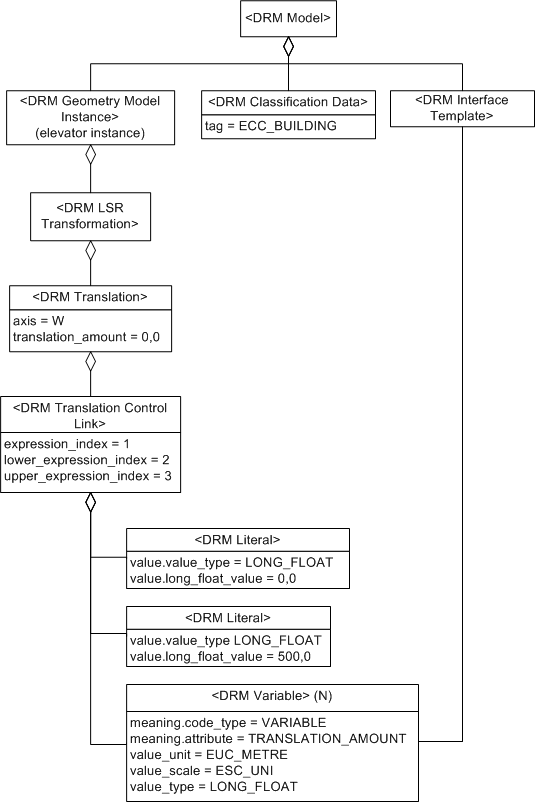

1. Consider a <Geometry Model> instance representing a building, containing a <Geometry Model Instance> instance representing a lift cage (elevator car), where both <Model> instances are specified in a 3D LSR SRF, and the lift cage is intended to be a moving part of the building model. The <LSR Transformation> instance used to instance the lift cage into the building specifies a <Translation> component with a <Translation Control Link> instance as depicted in :



   This <Translation Control Link> instance specifies:

   1. A <Literal> component, defining the lower limit (the bottom of the lift shaft) of the translation, in this case, 0.0 metres.

   2. A <Literal> component, defining the upper limit (the top of the lift shaft) of the translation, in this case, 500.0 metres.

   3. A <Variable> component, the actual translation of the lift cage along the lift shaft's W axis at any given moment.

      The <Variable> instance's meaning = {SE_ELEM_CODE_TYP_VARIABLE, {SE_VAR_CODE_TRANSLATION_AMOUNT}}

      The <Variable> instance's value_unit = EUC_METRE and its value_scale = ESC_UNI, because <Translation> instances define their fields in metres.

FAQs

No FAQs supplied.

Constraints

• <<Publishable Object>>

Composed of (two-way) (inherited)

• one or more {ordered} <Expression> instances

Component of (two-way)

• one or more <Translation> instances

Inherited Field Elements

Field Elements

Notes

Fields Notes

description

The description field specifies a text description of the purpose of the <Control Link> instance.

expr_index

For a given <Translation Control Link> instance C, expr_index serves as a one-based index into the ordered <Expression> components of C such that the specific <Expression> instance selected specifies the value of the translation_amount field of each <Translation> instance controlled by C.

lower_expr_index

For a given <Translation Control Link> instance C, if lower_expr_index > 0, it serves as a one-based index into the ordered <Expression> components of C such that the specific <Expression> instance selected specifies the lower limit for the translation_amount of each <Translation> instance controlled by C. If lower_expr_index = 0, it indicates that no such lower limit is being specified.

upper_expr_index

For a given <Translation Control Link> instance C, if upper_expr_index > 0, it serves as a one-based index into the ordered <Expression> components of C such that the specific <Expression> instance selected specifies the upper limit for the translation_amount of each <Translation> instance controlled by C. If upper_expr_index = 0, it indicates that no such upper limit is being specified.
