__ The Environment Federation: Simulated Environments Impact Tactical Operations Bob Richbourg, IDA Bob Lutz, JHU APL (Program Manager) |
 The Environment Federation |

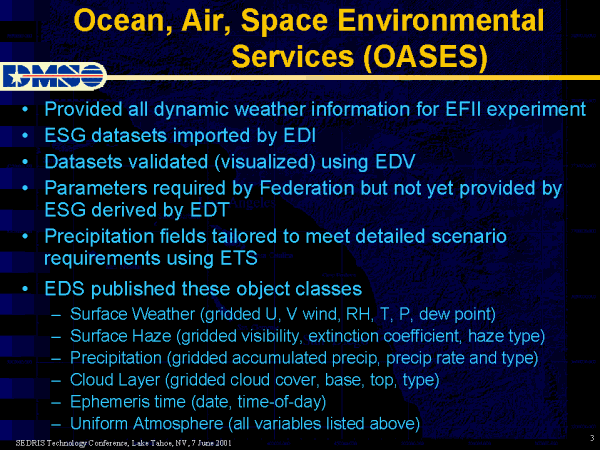

 Ocean, Air, Space Environmental Services (OASES) |
 Dynamic Terrain Simulation (DTSim) |

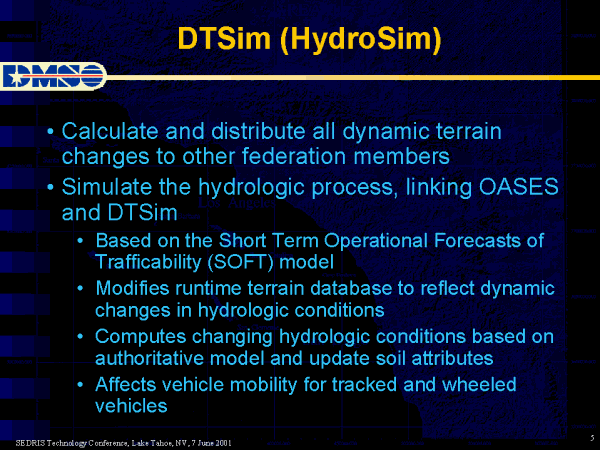

 DTSim (HydroSim) |

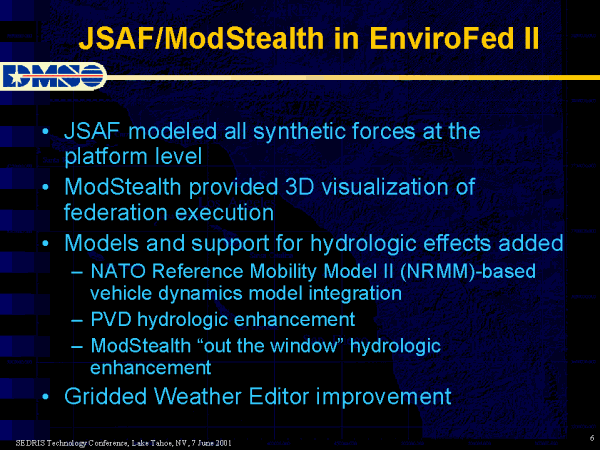

 JSAF/ModStealth in EnviroFed II |
 hlaResults™ |

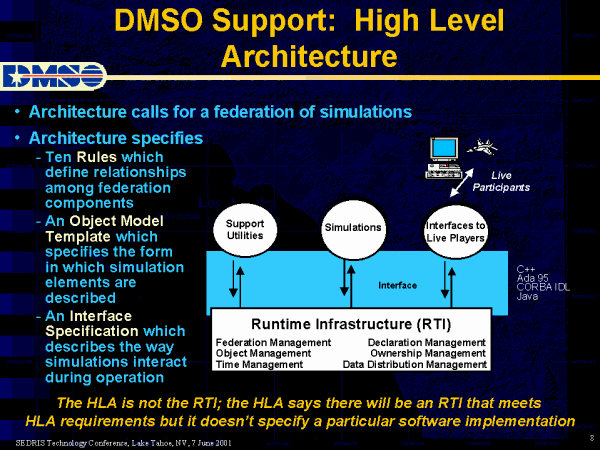

 DMSO Support: High Level Architecture |
 PPT Slide |
 PPT Slide |
 DMSO Support: TSG&A |

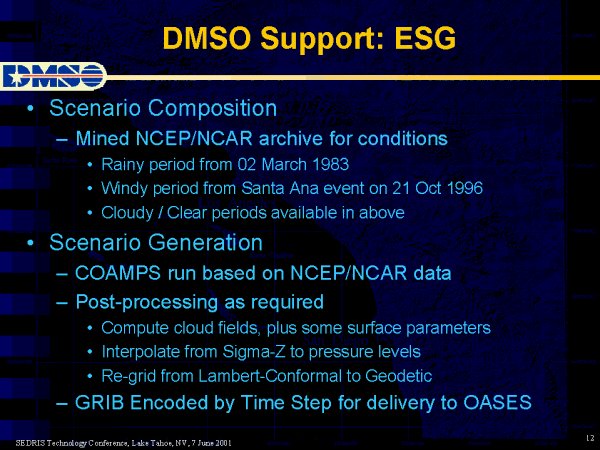

 DMSO Support: ESG |

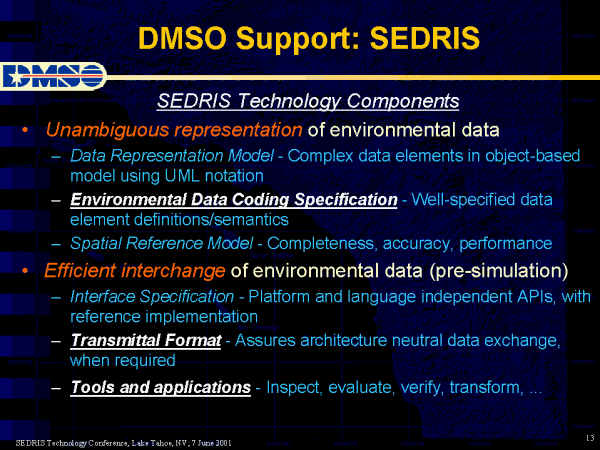

 DMSO Support: SEDRIS |

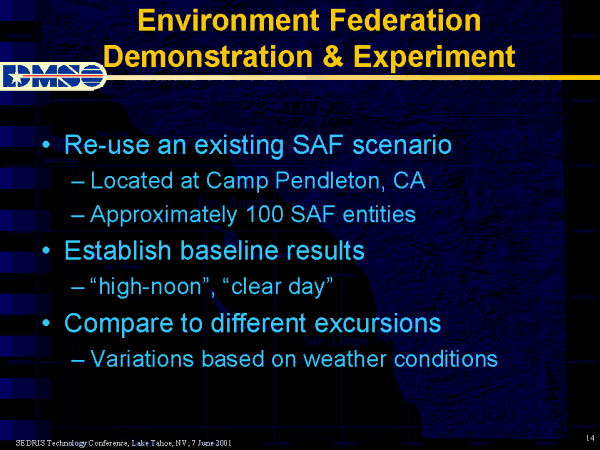

 Environment Federation Demonstration & Experiment |
 Measuring Outcome |
 Simulation Experiment Overview |
 Order of Battle |
 Phase 1: Air Operations |
 Phase 2: Scouts Out |
 Phase 3: Obstacle Breach |

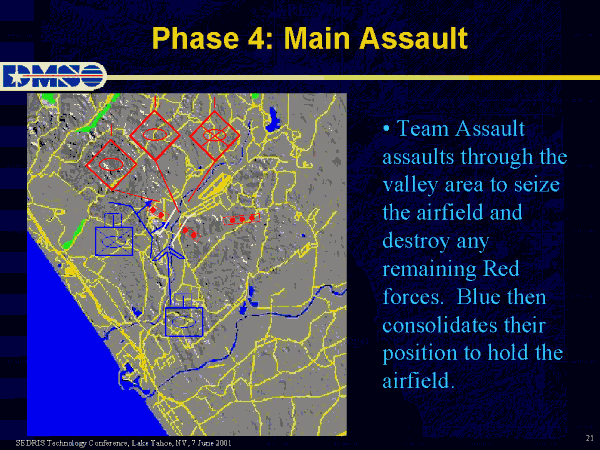

 Phase 4: Main Assault |
 Environmental Experiments |

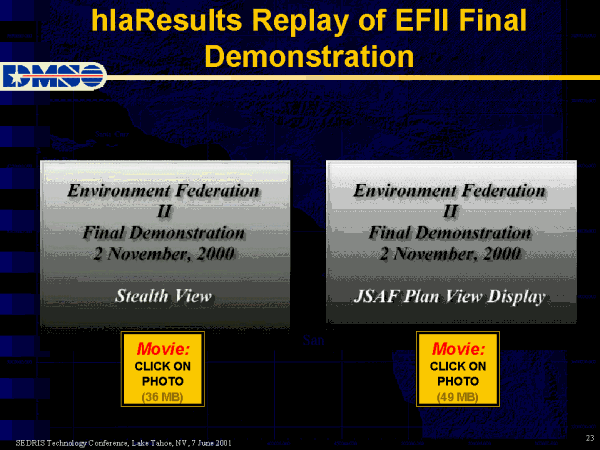

 hlaResults Replay of EFII Final Demonstration |
 Dynamic Terrain & Weather: Impact on the Battle Outcome |

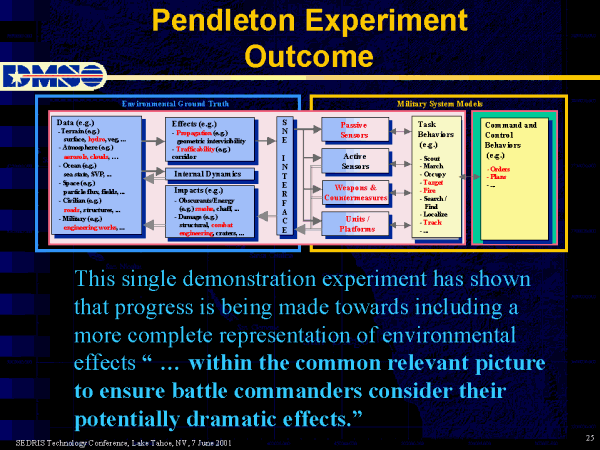

 Pendleton Experiment Outcome |

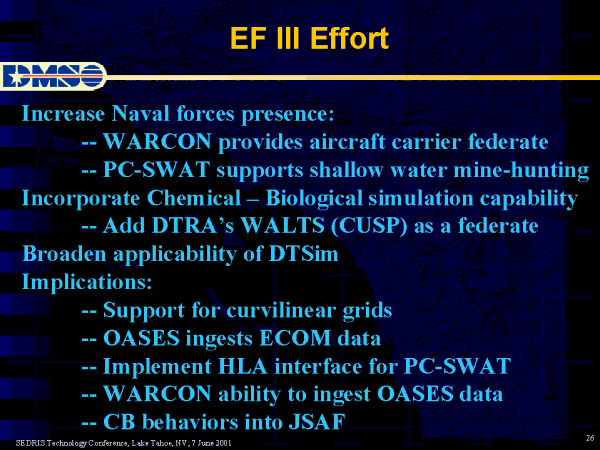

 EF III Effort |
. | . |
