Class Name: SRF Summary

Superclass - <SEDRIS Abstract Base>

Subclasses

Definition

An instance of this DRM class summarizes a spatial reference frame that is used in a transmittal.

Primary Page in DRM Diagram:

• 20

Secondary Pages in DRM Diagram:

Example

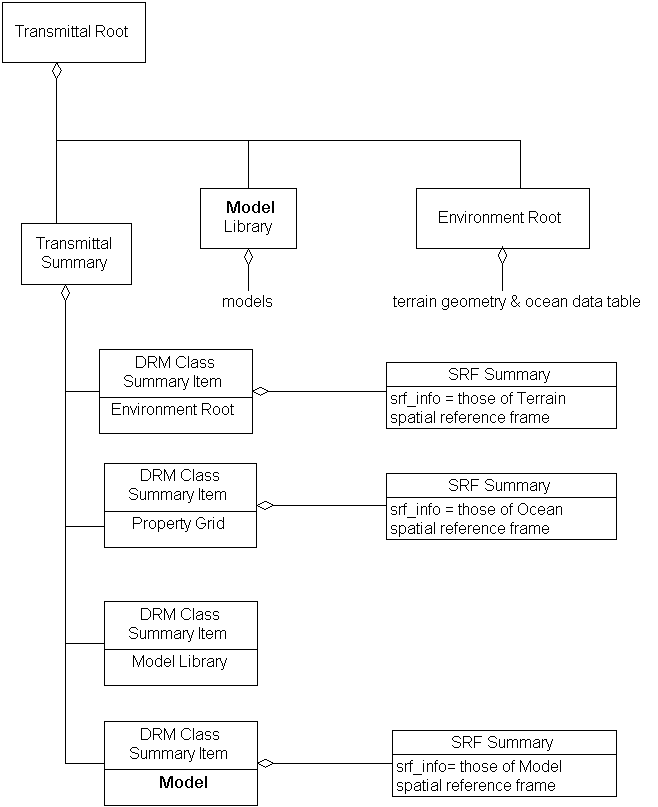

1. Consider a transmittal containing terrain geometry, an oceanographic <Property Grid> and a number of <Model> instances. The terrain is in one spatial reference frame, the <Property Grid> in another, and some of the <Model> instances in a third (in this example, LSR).



FAQs

No FAQs supplied.

Constraints

• <<Publishable Object>>
• <<Non Overlapping DRM Class Summary Items>>

Component of (two-way)

• zero or more <DRM Class Summary Item> instances

Inherited Field Elements

Field Elements

Notes

Fields Notes

srf_info

 The srf_info field specifies the spatial reference frame which
 the given <SRF Summary> instance is summarizing.
