EDCS Use Summary Item

The SEDRIS Data Representation Model APPENDIX A - Classes EDCS Use Summary Item

Class Name: EDCS Use Summary Item

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

Within the scope being summarized, an instance of this DRM class can specify either an ECC with an optional set of EACs, or just an individual EAC.

The <Classification Data> instance, which may be qualified by <Property Value> instances, represents the (potentially qualified) classification being described, if any.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

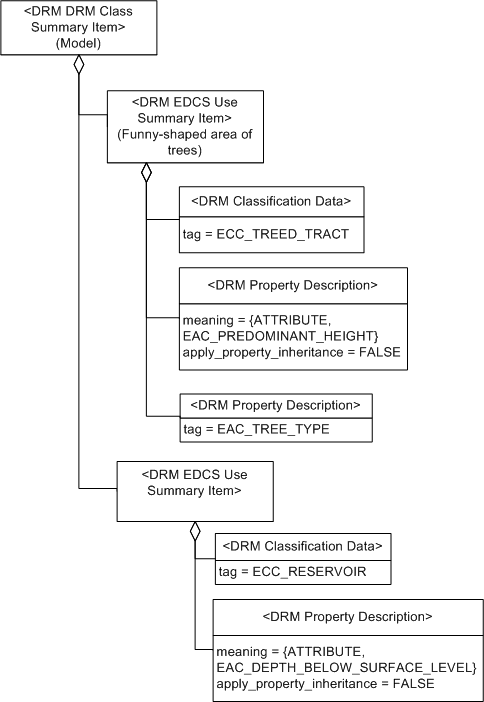

A transmittal containing two different <Model> instances, one classified using ECC_TREED_TRACT with <Property Value> components and the other classified using ECC_RESERVOIR with <Property Value> components as depicted in :

FAQs

No FAQs supplied.

Constraints

<<Publishable Object>>

Composed of (two-way)

zero or one <Classification Data> instance
zero or more <Property Description> instances

Component of (two-way)

zero or more <Base Summary Item> instances
zero or one <Transmittal Summary> instance

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_String	description;	(notes)

Notes

Fields Notes

description

The description specifies an abstract, human-readable description of the overall classification specified by the given instance. The description may be empty.

Prev: EC Surface Location. Next: Edge Direction. Up:Index.

Last updated: August 23, 2005
