Class Name: EDCS Use Summary Item

Superclass - <SEDRIS Abstract Base>

Subclasses

Definition

Within the scope being summarized, an instance of this DRM class can specify either an ECC with an optional set of EACs, or just an individual EAC.

The <Classification Data> instance, which may be qualified by <Property Value> instances, represents the (potentially qualified) classification being described, if any.

Primary Page in DRM Diagram:

• 20

Secondary Pages in DRM Diagram:

Example

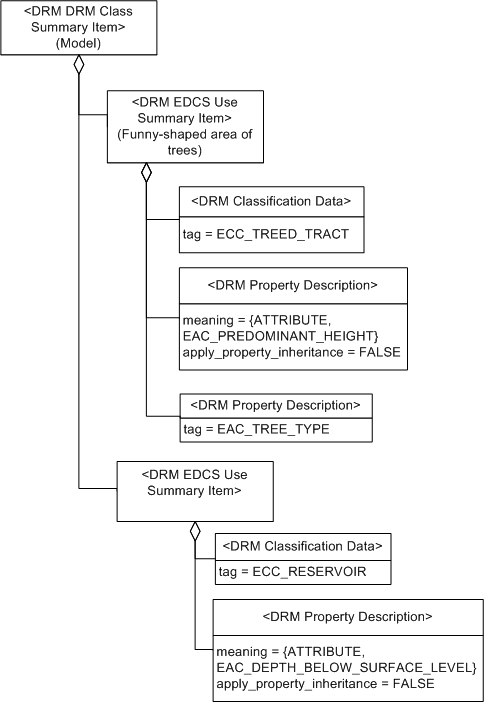

1. A transmittal containing two different <Model> instances, one classified using ECC_TREED_TRACT with <Property Value> components and the other classified using ECC_RESERVOIR with <Property Value> components as depicted in Figure 15:



   Figure 15 — <DRM EDCS Use Summary Item> example

FAQs

No FAQs supplied.

Constraints

• <<Publishable Object>>

Composed of (two-way)

• zero or one <Classification Data> instance
• zero or more <Property Description> instances

Component of (two-way)

• zero or more <Base Summary Item> instances
• zero or one <Transmittal Summary> instance

Inherited Field Elements

Field Elements

Notes

Fields Notes

description

The description specifies an abstract, human-readable description of the overall classification specified by the given instance. The description may be empty.
